Basic Carburetor Repair Kit (Carter)
Basic Carburetor Repair Kit (Carter)

Basic Carburetor Repair Kit (Carter)
Our Price: $39.99
Special Instructions: 20240419


Product Code: ABC231
Qty:

Description

International / Farmall - Fits: C, Super A (sn 255418 and up), Super C, 100, 130, 200, 230 (w/ #UT733S & UT734S w/ cast iron upper bodies); Replaces: 76769R1
Carb Mfg #'s - UT27015, UT652, UT733S, UT734S, UT771A, UT771S, UT795S, UT925A, UT925S, Fits Carter Carburetors with upper throttle body #: 0-653
  • Fits the below listed Carter Carburetor with the cast iron top body.
On some applications you may also have to order the ABC1903 carb kit to get the correct bowl gasket.

Kit includes:
  • throttle shaft
  • needle and seat
    • 5/16" - 24 UNF fine thread seat
    • uses needle / seat #31-500, 25-33
  • float lever pin
  • choke and throttle shaft seal
  • needle valve
  • adjustment screw
  • gaskets and instructions

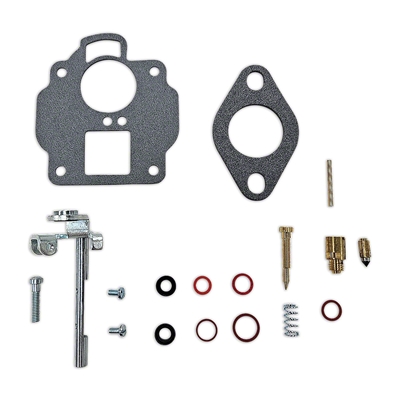

Includes parts shown in picture above
  • For reassembly purposes only, instruction sheet may depict parts that are n
