Basic Carburetor Repair Kit (IH Carb)
Basic Carburetor Repair Kit (IH Carb)

Basic Carburetor Repair Kit (IH Carb)
Our Price: $24.99
Special Instructions: 20240419


Product Code: ABC465
Qty:

Description

  • IH Industrial - Fits: I6 (with throttle body 8557D)
    International / Farmall - Fits: [ BM, M, MTA, MV, O6, W6 (with throttle body 8557D) ], I9, Super H, Super M, Super MTA, Super MV, Super MVTA, Super W6, [ W400, W450, 300, 350, 400, 450, 600, 650 (Must reuse old idle adjustment screw) ], W6TA, W9, WR9, WR9S; Replaces: 356948R92, 356948R93, 358065R91, 358065R93, 361525R92, 361525R93, 50983D, 50983DB, 50983DC, 50983DD, 52814D, 52814DB, 52815D, 52815DB, 52815DC, 58814DC, 60329D, 60329DA, 60329DB, 60329DC, 8867D, throttle body: 8867DX, 8557D
    Carb Mfg #'s - 356948R91, 356948R92, 357231R92, 358065R91, 358554R91, 361525R91, 361525R92, 362173R91, 362173R92, 52814D, 52815D, 60329DA, with throttle body 8557DX or 8867D: 47387DB, 50983DB

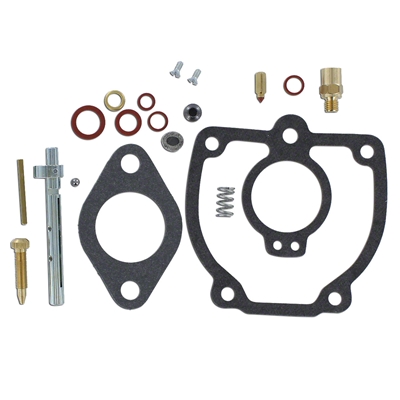

    Kit includes:
    • throttle shaft (3.314" length)
    • needle and seat
    • float lever pin
    • choke and throttle shaft seal
    • needle valve
    • idle adjustment screw with graphite packing
    • friction ball
    • gaskets and instructions

    Includes parts shown in picture above.
    • For reassembly purposes only, instruction sheet may depict parts that are not included in this kit.

    Make sure to find your carburetor manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
