Allis Chalmers - Fits: all using #'s 70240178, 70242326, 70242345 or 70251878 hydraulic lift cylinders with 1-7/8" or 2" O.D. seals:
170 (up to SN: 5019), 180 (up to SN: 5097),
190 (up to SN: 25538),
D17 (Series IV, SN: 75000 and up),
D19 (with 3PT);
Replaces: 255805, 257772, 70255805, 70257772

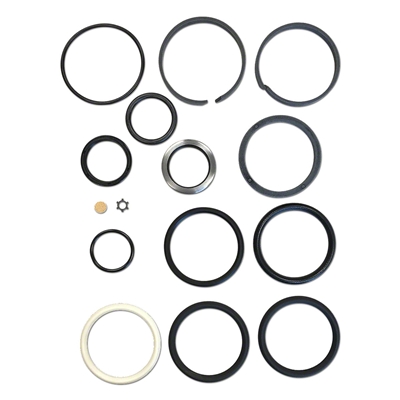

Kit includes the following:
(6-piece) V-Ring packing; 244575, 341040, 70244575, 70341040
(2-piece) Piston Wear Strips; 341380, 70341380
O-Ring (1.359" ID x 0.139" thick); 240843, 924270, 70240873, 70924270
O-Ring (2.734" ID x 0.139" thick); 924686, 70924686
O-Ring (1.475" ID x 0.210" thick) 190 only; 923650, 70923650
Seal (2" OD) late SN: 17071 to 25538; 343382, 70343382
Seal (1-7/8" OD) for 190 up to SN: 17071; 237415, 70237415, 702160020
Breather Retainer; 250542, 70250542
Breather; 240188, 70240188
Note: Two (2) kits used per tractor, sold individually.
