IH Industrial - Fits: [ I6, U6 (with C-248 gas engine) ]
International / Farmall - Fits: [ M, MV, O6, OS6, T6, UC248, W6 (with C-248 gas engine) ];
Replaces: 374264R91, PK155
Miscellaneous - Replaces: Sleeve: GE12, DS194

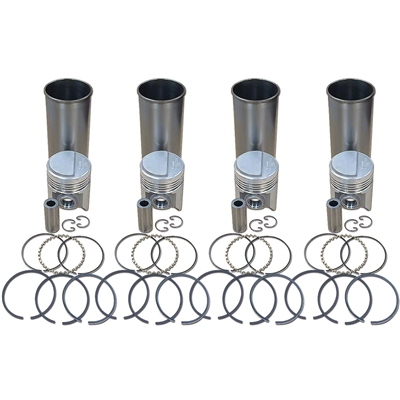

This 4-cylinder kit has a 4" overbore.
Includes sleeves, aluminum stepped head pistons, piston ring sets, piston pins and pin retainers.
1.312" wrist pin O.D.
Sleeve O.D. (cold) 4.124"
Please be careful installing the sleeves. If the bore is not cleaned or honed properly, then the sleeves will break if you apply too much force. We are not responsible for sleeves broken during installation.
To order the sleeves separately please order IHS4412
If you need replacement piston rings for this kit, please order ABC2082
