Case/IH - Fits: 385
IH Industrial - Fits: 21026, 21206, 21256, 21456, 2424, 2444, 2504, 2544, 2656, 2706, 2756, 2806, 2826, 2856, Following when equipped with 66253C1 cast bumper weight: 2400A, 2400B, 2405B, 2410B, 2412B, 2500, 2500A, 2500B, 2505B, 2514B
International / Farmall - Fits: Hydro 70, Hydro 84, Hydro 86, 1026, 1206, 1256, 1456, 404, 424, 444, 460, 504, 544, 560, 656, 660, 664, 666, 686, 706, 756, 806, 826, 856, Following 2 wheel drive only: 784, 884, Following when equipped with 66253C1 cast bumper weight: 2400, 2510B, 454, 464, 484, 574, 584, 674, 684, will also fit the following models when using (2) IHS3322 spacers: 1066, 1466, 1468, 1566, 1568, 766, 966, Hydro 100;
Replaces: 383389R11, 383389R21

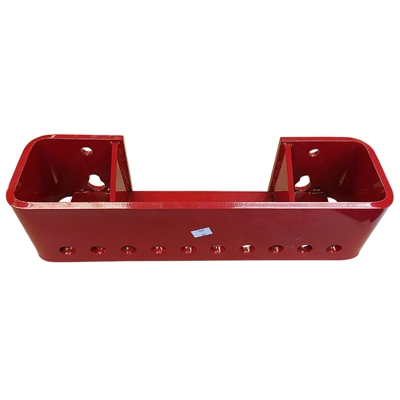

This is a 10 hole bracket
There is 16" from center-to-center bolt holes The overall length is 23-3/8".
For utility applications, must have existing 66253C1 cast bumper weight to install this bracket
