International / Farmall - Fits: all with carburetor # 358065R91 or 358554R91: Super H, Super HV, Super W4;
Replaces: drain cock: 134519, strainer screen retainer gasket: 18377D, throttle stop screw: 186566, idle adjusting spring: 24685D, fuel adjusting screw packing nut: 24687DA, idle adjusting screw: 24689D, idle outlet plug: 24693D, throttle stop screw spring: 25484D, needle valve gasket: 25948D, Needle: 29302DXA50, strainer screen retainer: 29902DX, metering nozzle clamp nut gasket: 32615D, starting shutter shaft (choke shaft): 357000R91, starting shutter, choke plate: 357002R12, (4) fuel bowl screws: 413-414, dust seal retainer: 45148D, starting shutter dust seal: 45149DA , starting lever friction ball spring: 46059D, fuel bowl gasket: 47388DA, throttle valve plate: 47391D, (2) throttle valve plate screws: 47392D, float axle (pin): 47395D, needle valve and seat: 47396DAX40, main discharge nozzle gasket: 47401D, metering nozzle clamp nut: 47402D, fuel adjusting screw: 47404DA, (4) lock washers: 492-11025, Idle metering jet: 49798D72, throttle shaft: 54488DAX, main discharge nozzle: 56645DX, drip hole filler package: 60947D, fuel adjusting screw packing: 24703DA, 67266DX, carburetor to manifold gasket: 21632D, 31336D, 530681R2, Carburetor repair kit: 354453R93, 354453R92, 354453R91, friction ball: 46184D, 52791R1, 86624941
Carb Mfg #'s - 358065R91, 358554R91
Premium carburetor repair kits contain:
throttle shaft
throttle plate
choke shaft
choke plate
throttle shaft bushings and packing
metering nozzle
brass plugs
float pin
needle and seat
gaskets fuel strainer & more...

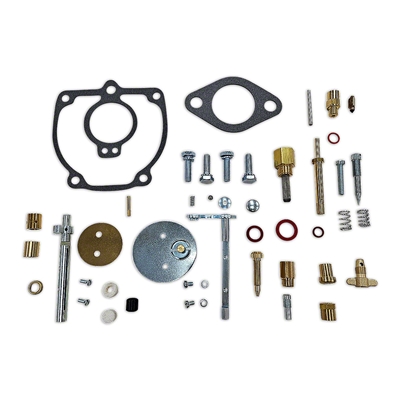

Includes parts shown in picture
For reassembly purposes only, instruction sheet and diagram may depict parts that are not included in this kit.
Make sure to find your carb manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
