Valve, Ring & Cylinder Replacement Gasket Set (Rebore gasket set)

Valve, Ring & Cylinder Replacement Gasket Set (Rebore gasket set)

Our Price: $149.99
Special Instructions: 20240419


Product Code: JDS3128
Qty:

Description

  • Clevite - Replaces: Gasket Kit: HS3022
    Fits John Deere - 60 (gas, LP); Replaces: Lower Water Pipe Gasket: A2328R, Cylinder Water Outlet Gasket: A2376R, Tappet Lever Bracket Screw Washers x2 and Water Outlet Front Cap Screw Washers x2: A3105R, Cylinder to Case Gasket: A3704R, Upper Water Pipe O-Ring x2 (Regular, Hi-Crop and Standard S.N. 6043000 and up): A4444R, Cylinder Head Gasket (Sub to A6120R): A4626R, Tappet Lever Cover Gasket: A4629R, Carburetor to Manifold Gasket: A4631R, Carburetor to Intake Gasket: A4634R, Manifold Intake Gaskets x2: A4642R, Cylinder Head Gasket (Sub for A4626R): A6120R, Crankcase Cover Gasket: A903R, Manifold Gaskets: AA7300R, Upper Water Pipe O-Rings x2 (Standard S.N. 600001-6042999 and Orchard S.N. 6000001 and up) (Sub to F3450R): F1319R, Upper Water Pipe O-Rings x2 (Standard S.N. 600001-6042999 and Orchard S.N. 6000001 and up) (Sub for F1319R): F3450R, Cylinder Head Stud Washers x9: K2080R , Ventilator Outlet Pipe O-Ring: R495R, Gasket Kit: AA7421R, RE526222, AA5371R, RE526774

    • Will also fit All Fuel by also ordering JDS076GK
    • Includes all gaskets needed to replace cylinder head, including sealing washers.
    • This is a more comprehensive version of the traditional Head Set or Valve Grind Set. Also replaces HS3022.
    • Narrow side of the fire ring (crimp) of the head gasket goes toward the cylinder head.

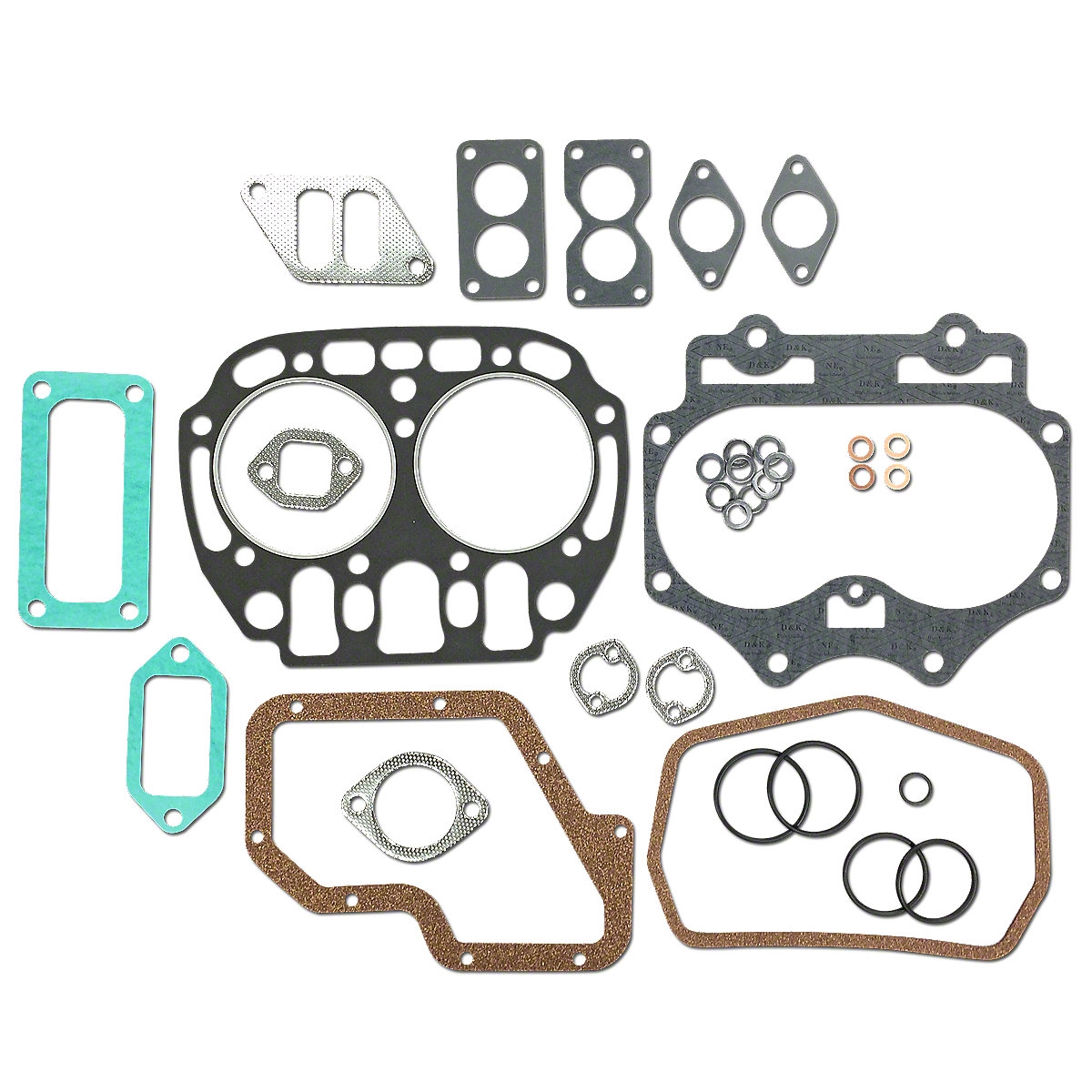

    Kit Includes:
    • (1) Lower Water Pipe Gasket
    • (1) Cylinder Water Outlet Gasket
    • (4) Screw Washers
    • (1) Cylinder to Case Gasket
    • (2) Upper Water Pipe O-Ring
    • (1) Tappet Lever Cover Gasket (JDS928)
    • (1) Carburetor to Manifold Gasket (JDS915)
    • (1) Carburetor to Intake Gasket (JDS915)
    • (2) Carburetor Intake Gaskets
    • (2) Manifold Intake Gaskets
    • (1) Cylinder Head Gasket (JDS6355)
    • (1) Crankcase Cover Gasket
    • (1) Manifold Gaskets
    • (9) Cylinder Head Stud Washers
    • (1) Ventilator Outlet Pipe O-Ring
