- Fits John Deere - [
- 530, 630 (gas) ], 730 (gas and diesel);
- Replaces: 12H10R, 12H11R, 12H12R, 12H291, 12H291R, 12H303, 14H785R, 14H812R, 19H2020, 24H1009, 24H106R, 24H1309, 24H1330, 24H1366, 24H1372, 24H145A, 24H464E, 24H550R, 24H889R, 28H1497, A350R, A4666R, A4667R, A4668R, A4669R, AR20945, AR20946, B1839R, B2804R, R20817, R20912R

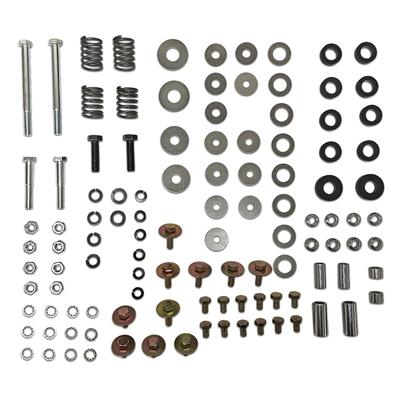

Depending on your application, you may have extra parts.
Includes hardware for:
Hood
Grille
Grille frame (corner)
Flywheel cover
Instrument panel
QTY Hardware Description Hardware Dimension Replacement
6 Hex Head Bolt 5/16" X 1" AR20945
4 Hex Head Bolt 5/16" X 3/4" AR20946
12 Hex Head Bolt 5/16" x 1/2" 19H2020
2 Rubber Washer .594" ID x 1.250" OD A4668R
2 Spacer .453" ID x .625" OD x.469" L A4669R
2 Spacer .391" ID x .531" OD x 1.156" L B2804R
8 Rubber Washer .594" ID x 1.00" OD A4666R
4 Spacer .344" ID x .625" OD x .280" L B1839R, R20817
4 Spacer .349" ID x .625" OD x .375" L R20912R, A4667R
2 Spacer .493" ID x .675" OD x 1.50" L 28H1497
4 Spring .780" ID x 1.022" OD x 1.375" L A350R
8 Flat Washer 5/16" ID X 1 1/8" OD 24H145A, 24H1009
4 Hex Nut 5/16" 14H785R
12 Shake Proof Washer 5/16" 12H291, 12H291R
6 Split Lock Washer 5/16" 12H303, 12H10R
2 Flat Washer 5/8" ID X 1 1/2" OD 24H1372, 24H106R
2 Bolt 7/16"-NC X 1 1/2"
2 Split Lock Washer 7/16" 12H12R
2 Flat Washer 1/2" ID X 1 3/8" OD 24H1330, 24H464E
8 Flat Washer 5/8" ID X 1 5/16" OD 24H1366, 24H889R
4 Flat Washer 3/8" ID X 1" OD 24H550R, 24H1309
4 Hex Nut 3/8" 14H812R
4 Split Lock Washer 3/8" 12H11R
2 Bolt 3/8" x 4 1/4"
2 Bolt 3/8" x 2 1/2"
|
|
|
 |
|
 |
|
